ESTABLISHED BUILDING  2 NETWORK CORES: Installed a pair of Arista 7280 40/100g core switches: Serial in to reset to factory, configure IP, put on maint net for Arista Cloudvision Onboarding.  Configured, via Cloudvision, an MLAGi.  Configured, via Cloudvision, an MLAGe to campus cores.  Installed 100g full bow-tie MTP-8 uplinks (via 2MTP12-to-3MTP8 cartridges).  Tested on 40g and 100g editorial workstations speeds.

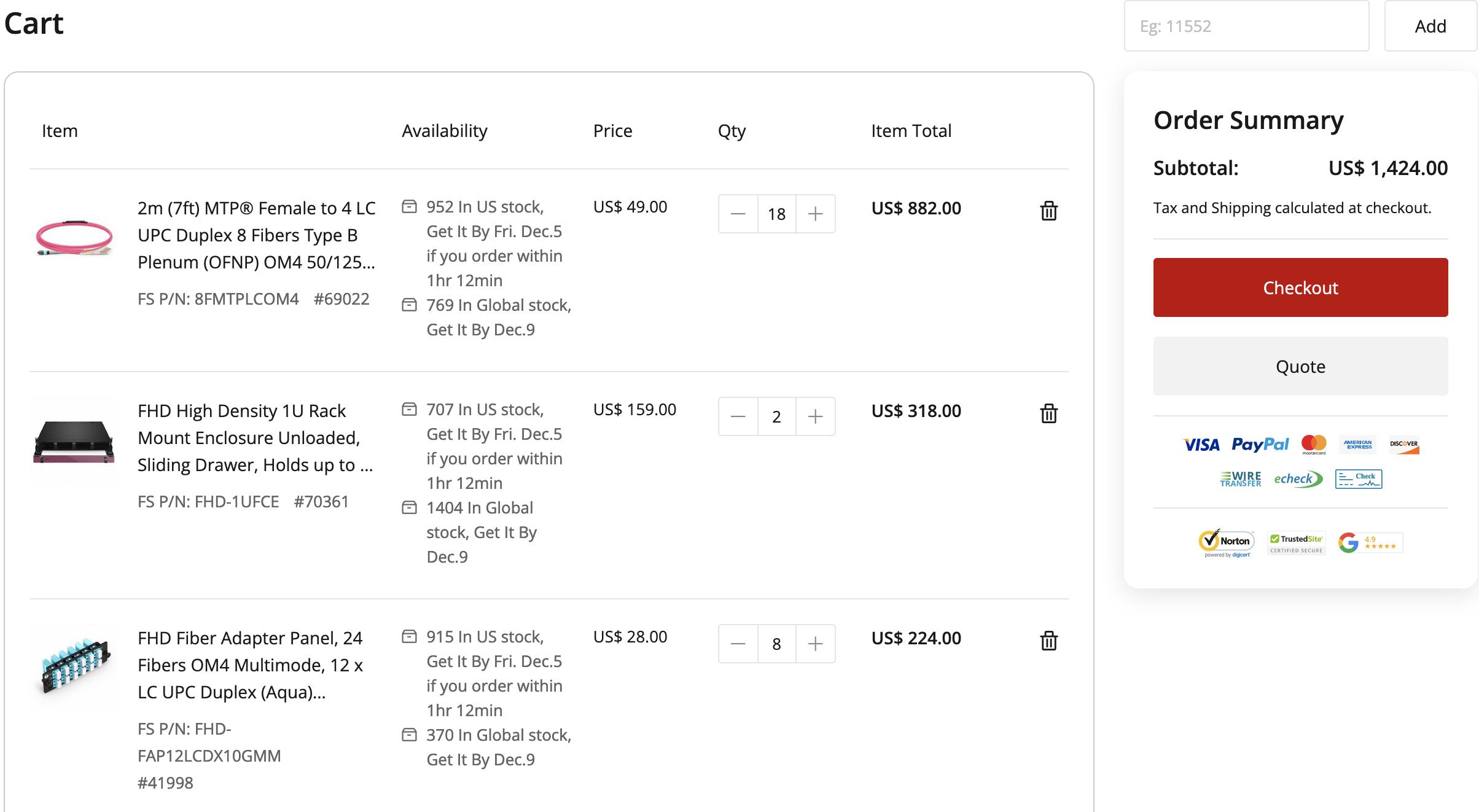

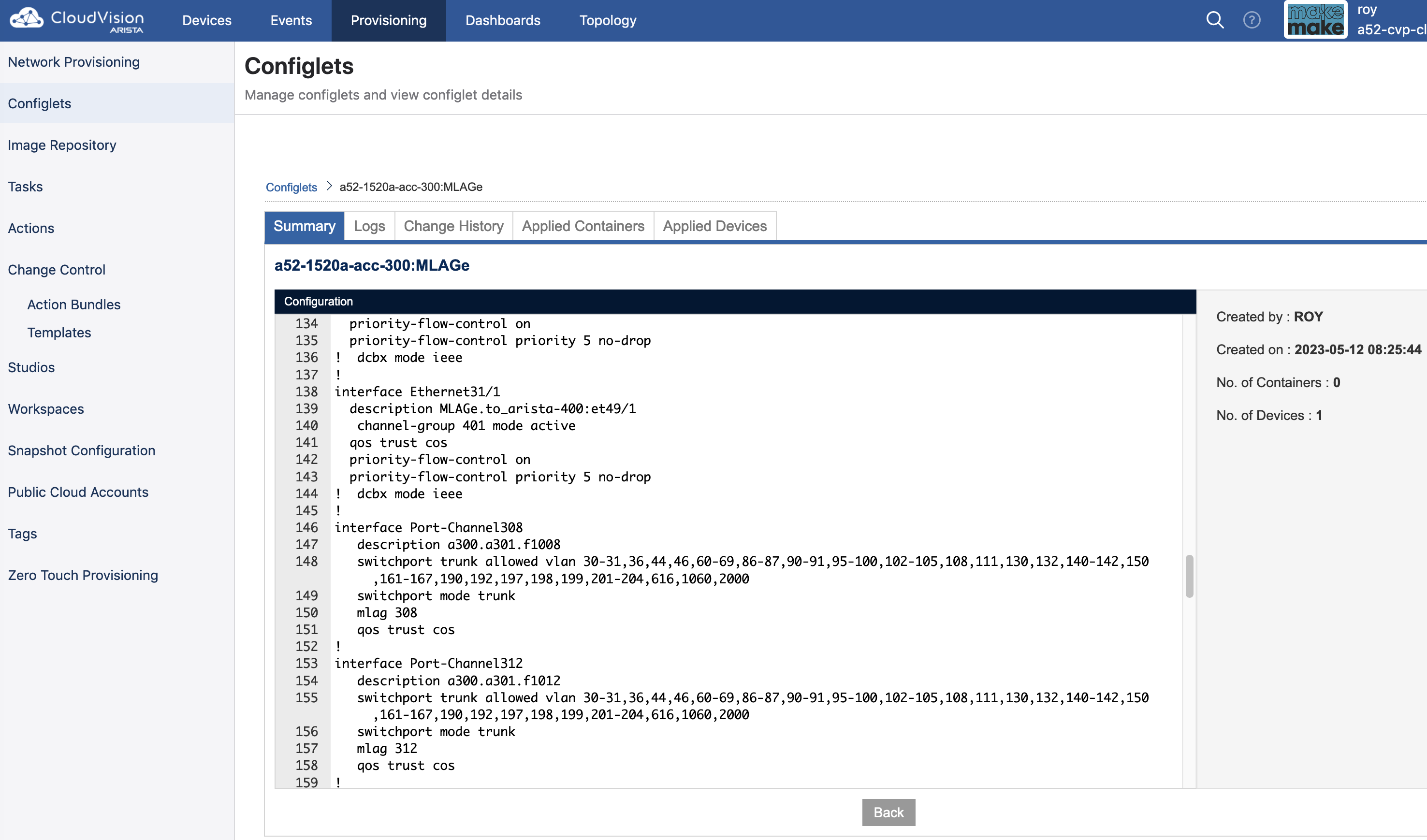

DESIGNED AND BUILT NEW TOPOLOGY: Took edge switches (Force10 S-60s) off of Bldg 1 runs and onto the new cores in Bldg 2.  Building 2 Conception Omnigraffle, Building 2 Planning Omnigraffle,  Parts_List,  Building 2 Detail Connections Omnigraffle, Cloudvision_MLAGe, moved edge switches to new cores, a few each morning.

ADDITIONAL REDUNDANCY: After a moving van nearly took out our low overhead inter-building fiber trunk, I added an additional 100g pair to the bowtie that travels through the high trunk line:  Po333      a200.a201.a300.a301     connected    trunk     full   600G   N/A

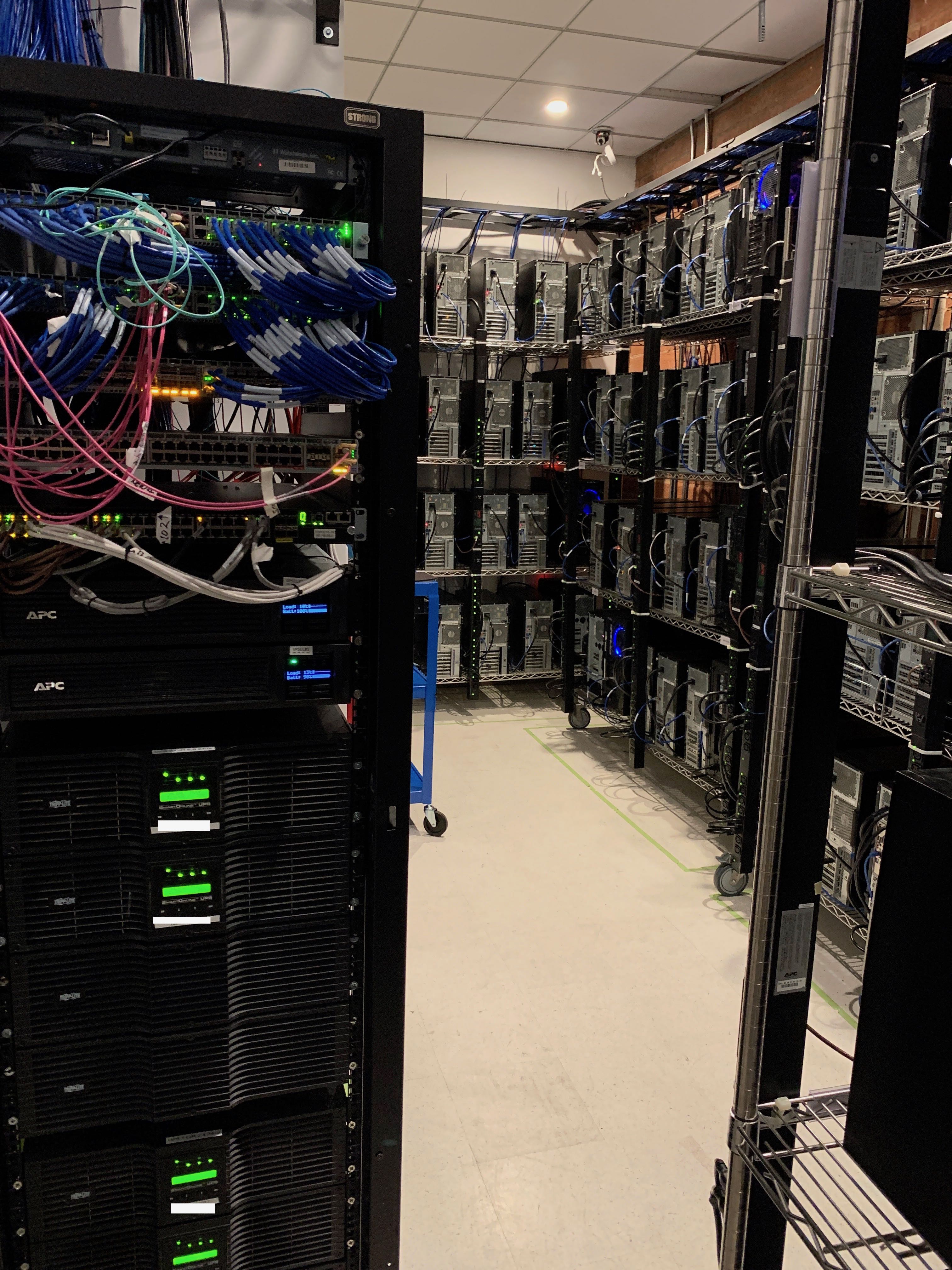

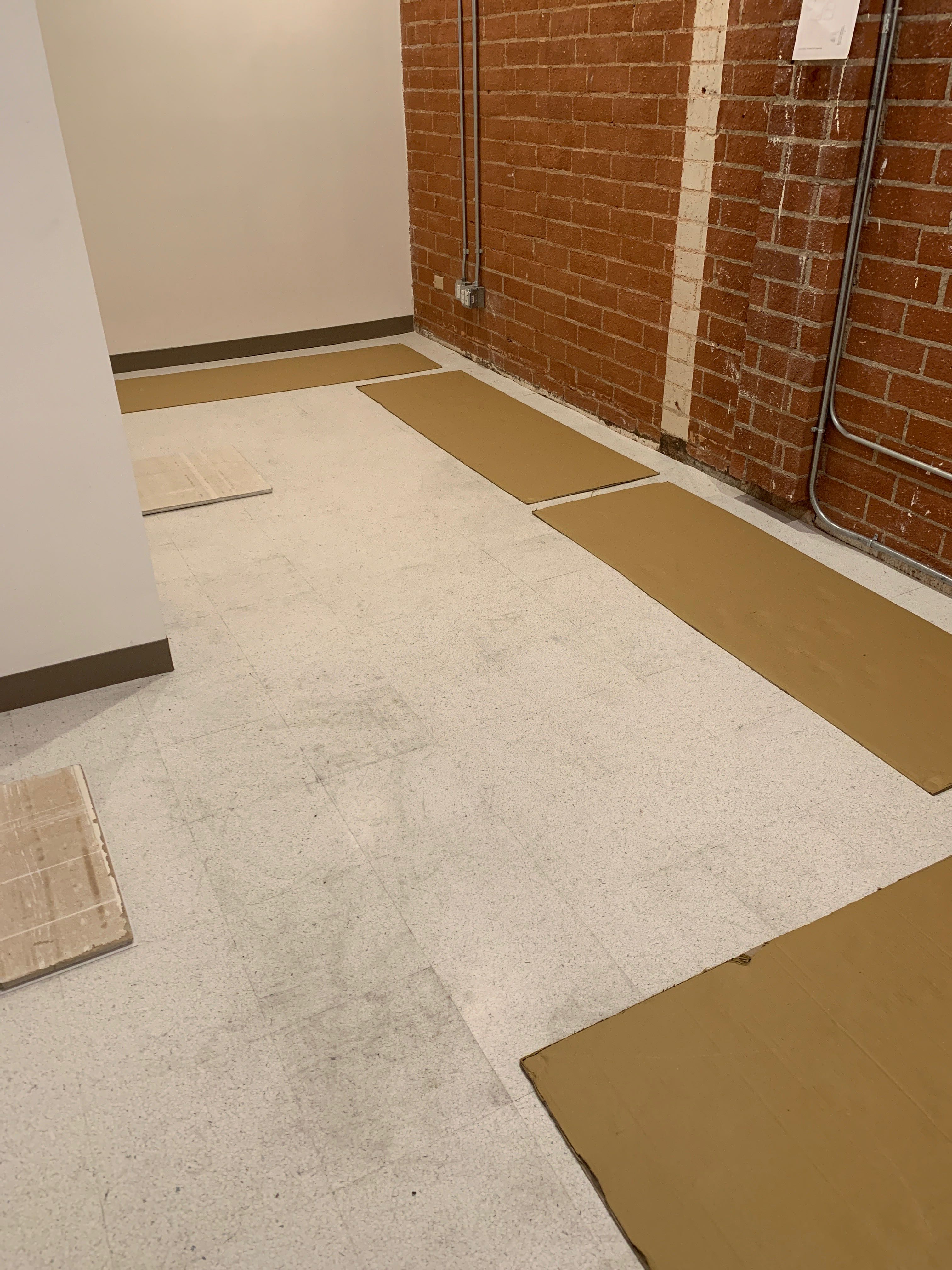

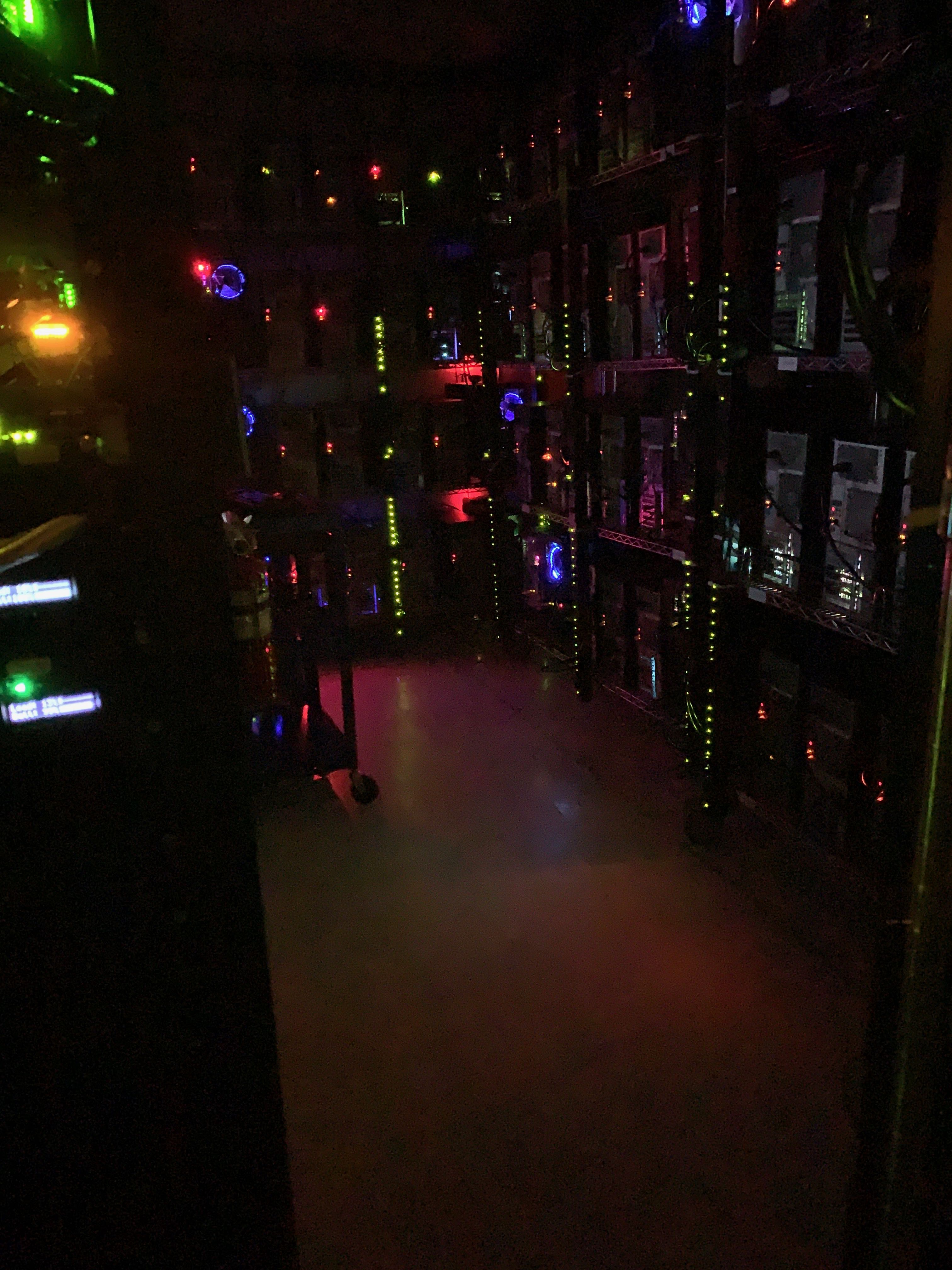

BLDG 2 PC-SERVER ROOM: Assisted in layout, rack design, network rack design, UPS sizing, and TED Power Monitoring of the Remote User PC Server Room. Final results here and here!   Designed, installed and configured TOR switches and MLAGs to Bldg 2 cores.

BLDG 1 EDITORIAL SERVER ROOM: Assisted in the layout and design of the new Editorial Server room in Building 2. Each server has remote KVM and video runs to an Edit bay hundreds of feet away where editors and clients work together to create re-branding, TV commerials, new mercendise sales videos. Each well-endowed PC (IBM Lenovo/$55k) has a 100g feed to the Isilon NAS server and can playback uncompressed 8K video.  Each PC runs an $80k software package.  Operators may make as high as $200/hr.

POWER CHARTS: I create Omnigraffle charts that trace power from the street to the host.
